Full Cantilevered Dome Shadeport

Full Cantilevered Dome Shadeport

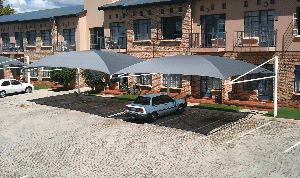

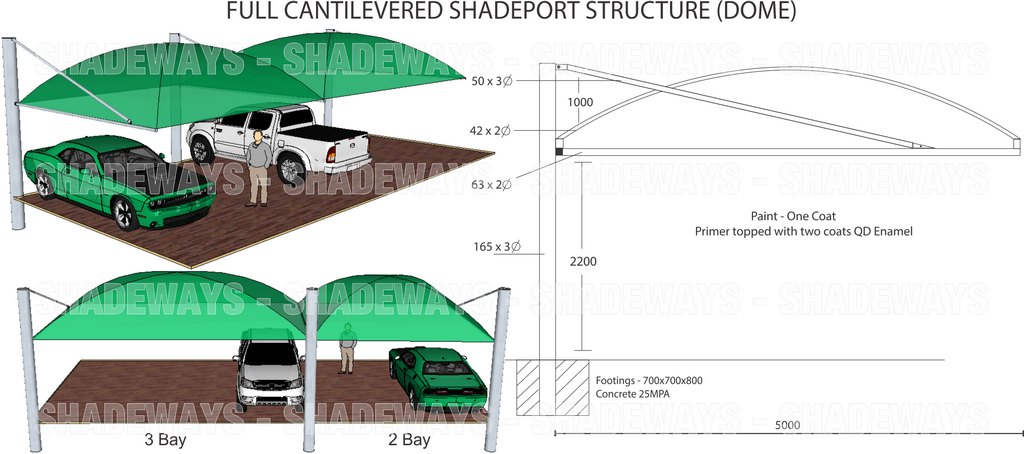

2 upright columns at the back of the structure which allows total access when turning into the parking bay as there are no columns at the front of this structure and eliminates the possibility of damaging your vehicle when parking. These structures can be supplied in dome, pyramid or hip roof configuration.

Material

  • Steel:
    Structural Steel tubing to specification depending on application
  • Finish:
    All Steel coated with red oxide etch primer and finished with standard white or colour coded QD Enamel
  • Foundations:
    Columns fixed into 600 x 600 x 800 of 25 MPA Concrete for standard applications.
  • Netting:
    Depending on colour choice. All UV Deflection exceeds 95%
