Standard Shadeport

Standard Shadeport

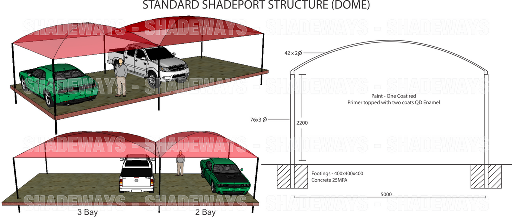

4 upright columns, placed at each corner of the structure. These structures are most cost effective due to the light steel specifications required and can be supplied in dome, pyramid or hip roof designs.

Material

  • Steel:
    Structural Steel tubing to specification depending on application
  • Finish:
    All Steel coated with red oxide etch primer and finished with standard white or colour coded QD Enamel
  • Foundations:
    Columns fixed into 400 x 400 x 500 of 25MPA Concrete for standard applications
  • Netting:
    Depending on colour choice. All UV Deflection exceeds 95%
